Description
Scope of Delivery:
- 1x PFERD flap disc Ø10xH10mm grit size 120
Product Description:
Resin bond - universally applicable - also suitable for machining brass, copper and zinc - shank Ø 3 mm
Technical Data:
- Shank Ø: 3mm
- Drive type: Flexible shaft drive, straight grinder
- Application recommendation: The removal rate should be increased by using a coarser grit and not by increasing the contact pressure in order to prevent unnecessary tool wear and thermal stress on the workpiece. For best performance, use at a recommended cutting speed of 15-20 m/s. This achieves an ideal compromise between stock removal rate, surface finish, temperature load on the workpiece and tool wear. Reducing the contact pressure and peripheral speed and adding grinding oil reduces tool wear and the temperature load on the workpiece. Use grinding oil suitable for the material to significantly increase the service life and grinding performance of the tools. Increasing the cutting speed results in a slightly finer surface finish. Increasing the contact pressure makes the surface slightly coarser. The softer the material to be machined, the coarser the surface (when using
- Machinable materials: Steels up to 1,200 N/mm² ( 54 HRC

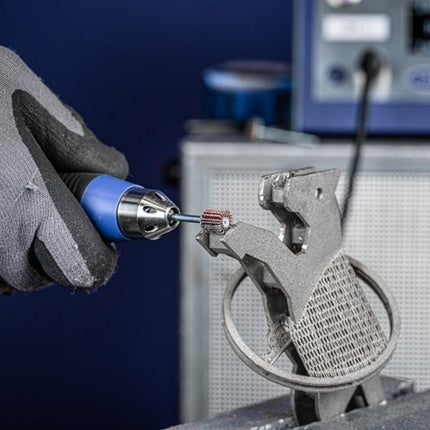

- Machining tasks: Weld seam processing, surface processing, structuring (matting, line matting and satin finishing), levelling, fine grinding in stages, deburring
- Width: 10mm
- Note: PFERDERGONOMICS recommends flap discs in order to sustainably reduce the vibration and noise generated during use and to improve working comfort.
- Length, shaft: 40mm
- RPM, opt.: 38000RPM
- Safety instructions: For safety reasons, the specified maximum permissible speed must never be exceeded. The contact pressure must be significantly reduced if the specified optimum speed is exceeded. Safety is only guaranteed if the clamping length is at least 15 mm and the specified maximum speed is not exceeded with open shank lengths.
- Advantages: Optimum contour adaptation due to high flexibility. Can be used very close to edges and at angles due to flat casting core design. Consistently high material removal rate over the entire service life, as new, aggressive abrasive is constantly released.
- grit size: 120
- Max. speed: 75000 min-¹
- Abrasive: Aluminium oxide A
- Material suitability Aluminium: limited suitability
- Material suitability cast iron: very suitable
- Material suitability steel: very suitable
- Brand: PFERD
- Material: Aluminium oxide
- Ø: 10 mm
- Height: 10 mm
- Material suitability plastic: limited suitabilityPlease observe the building regulations for commercial use!
For commercial use, please observe the building regulations!
