Description
Scope of Delivery:
- Flap disc Ø15xH10mm grit size 80
Product Description:
Synthetic resin bond - universally applicable - also suitable for machining brass, copper and zinc - Shank ∅ 3 mm
Technical Data:
- Shank Ø: 3mm
- Drive type: Straight grinder, flexible shaft drive
- Application recommendation: Increasing the cutting speed results in a slightly finer surface. Increasing the contact pressure results in a slightly coarser surface. The softer the material to be processed, the coarser the surface (when using , An increase in the stock removal rate should be achieved by using a coarser grit size and not by increasing the contact pressure in order to prevent unnecessary tool wear and thermal stress on the workpiece. Reducing the contact pressure and peripheral speed and adding grinding oil reduces tool wear and the temperature load on the workpiece. Use grinding oil suitable for the material to significantly increase the service life and grinding performance of the tools. For best performance, use at a recommended cutting speed of 15-20 m/s. This achieves an ideal compromise between stock removal rate, surface finish, temperature load on the workpiece and tool wear.
- Machinable materials: Cast steel, steels up to 1,200 N/mm² ( 54 HRC

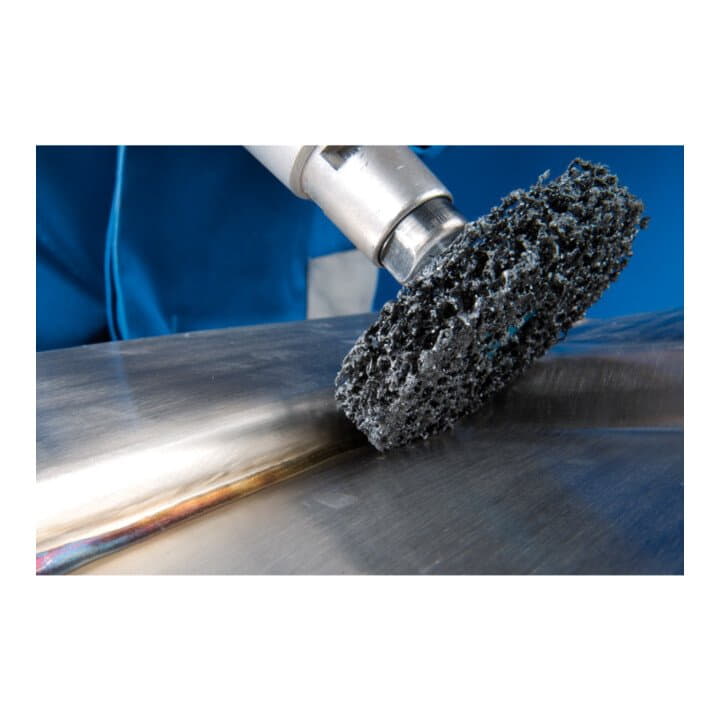

- Machining tasks: Weld seam processing, deburring, fine grinding in stages, levelling, surface processing, structuring (matting, line matting and satin finishing)
- Width: 10mm
- Note: PFERDERGONOMICS recommends flap discs in order to sustainably reduce the vibration and noise generated during use and to improve working comfort.
- Length, shaft: 40mm
- RPM, opt.: 25000RPM
- Safety instructions: For safety reasons, the specified maximum permissible speed must never be exceeded. The contact pressure must be significantly reduced if the specified optimum speed is exceeded. Safety is only guaranteed if the clamping length is at least 15 mm and the specified maximum speed is not exceeded with open shank lengths.
- Advantages: Optimum contour adaptation due to high flexibility. Consistently high material removal rate over the entire service life, as new, aggressive abrasive is constantly released. Can be used very close to edges and at angles thanks to the flat cast core design.
For commercial use, please observe the building regulations!
