Description

Package contents:

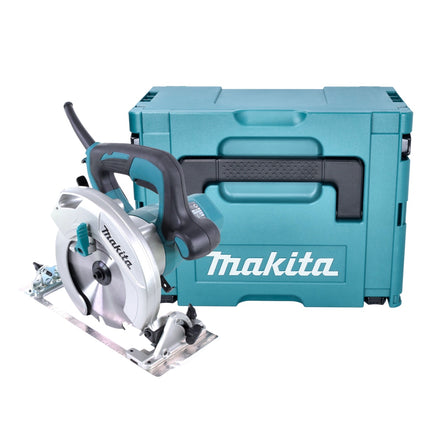

- 1x Makita HS 6601 Circular Saw for Hand Tools
- 1x HM saw blade 165 mm 10 Z (B-02917)
- 1x Rip fence (164095-8)
- 1x Suction nozzle (196520-1)

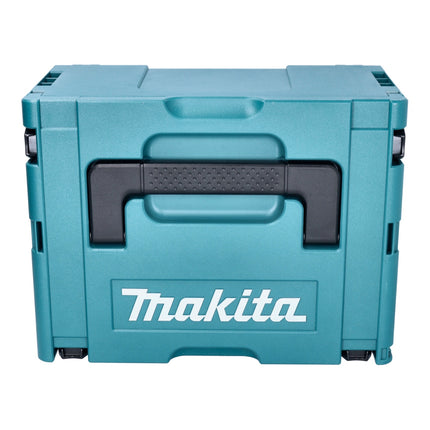

- 1x Makpac case Makita
- 1x Universal insert

Product description:

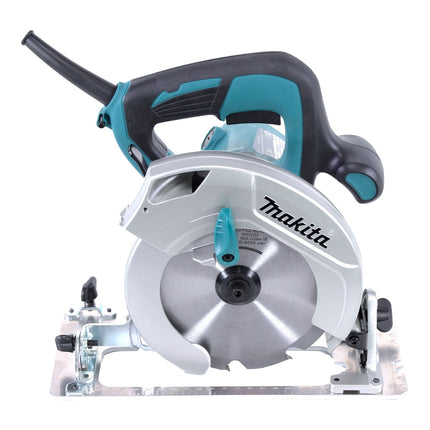

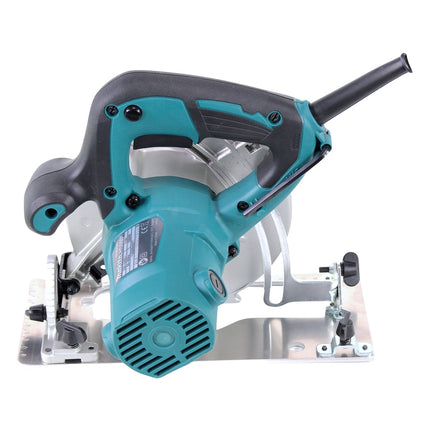

The circular saw HS6601 from Makita is perfect for cutting battens and boards, especially for roofing and for particleboard, solid wood, hardboard or table tops.  Its light weight and compact design make it very comfortable to use. The working angle can be adjusted from 0° to 45° and the cutting depth adjustment works according to the scissor principle, thus ensuring that the work is always adapted to the specific situation. In addition, an external suction nozzle can be connected to this HS6601 to ensure dust-free working.

Technical specifications:

Manufacturer: Makita
Manufacturer's designation: HS6601J
Power input: 1050 W
No-load speed: 5200 min-¹
Max. Cutting depth 90°: 54,5 mm
Max. Cutting depth 45°: 37.5 mm
Max. Tilt left / right: 0 / 45 °
Saw blade: 165 mm
Bore diameter: 20 / 30 mm
Length of mains cable: 2.5 m
Weight without cable: 3.4 kg
Product dimensions (L x W x H): 296 x 232 x 243 mm
Suction hose connection Ø inside/outside: 35 / 40 mm
Sound power level (LWA): 98 dB(A)
Sound pressure level (LpA): 87 dB(A)
K-value noise: 3 dB(A)
Vibration: ≤ 2.5 m/s²
K-value vibration: 1.5 m/s²

Specifications

• Hersteller: Makita
• Gewicht: 6318 g
• Antrieb: Netzbetrieb
• K-Wert Vibration: 1.5 m/s²
• Länge: 395 mm
• Breite: 295 mm
• Höhe: 215 mm
• Leistung: 1050 W
• Max. Leerlaufdrehzahl: 5200 U/min
• Schalldruckpegel: 87 dB
• Max. Vibration: 2.5 m/s²
• K-Wert Geräusch: 3 dB
• Schallleistungspegel: 98 dB
• Max. Sägeblatt-Ø: 165 mm
• Sägeblattbohrung: 20 mm
• Max. Schnitttiefe 90°: 54.5 mm
• Max. Schnitttiefe 45°: 37.5 mm
