Description

Package contents:

- 50x HECO MULTI MONTI plus SS Screw anchors 10.0 x 160mm

Product description:

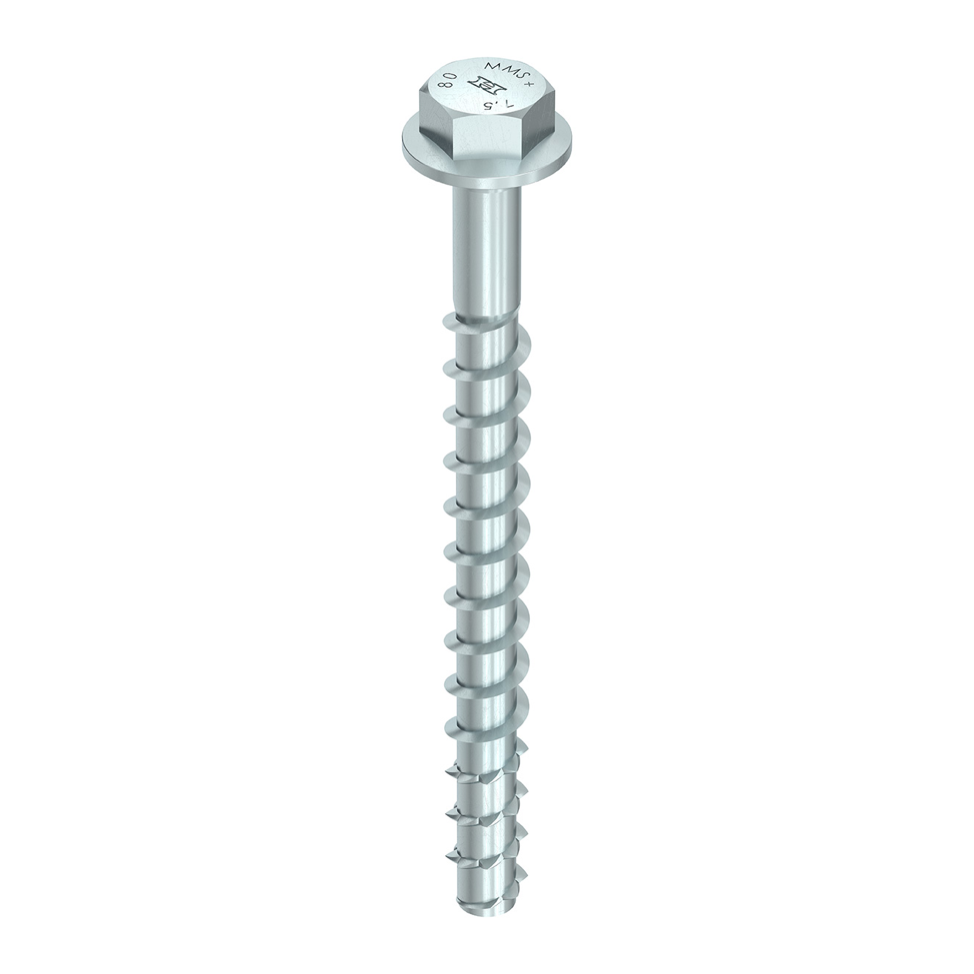

The MULTI-MONTI-plus concrete screw from HECO is self-tapping. It features a hexagonal head with crimped washer and MMS+ marking. Thanks to its full thread, it has reduced hole clearance for maximum strength and cost-effective construction. Its ideal interaction between core and thread geometry also ensures easy screwing and optimum stressing. What's more, its functional point with reinforced teeth reduces wear, making it ideal for multiple use in temporary fixings. It can be mechanically fixed and immediately stressed. The HECO MULTI MONTI plus SS screw is the ideal screw for the installation of props, pipes and adjustment props. It is also suitable for fixing cable ducts, landings, wall supports and brackets.

Technical specifications:

Manufacturer: HECO
Manufacturer's ref.: MULTI MONTI plus SS
Manufacturer's number: 48459
Product type: Concrete screw
Drive: hexagon head
Drive size: SW-13

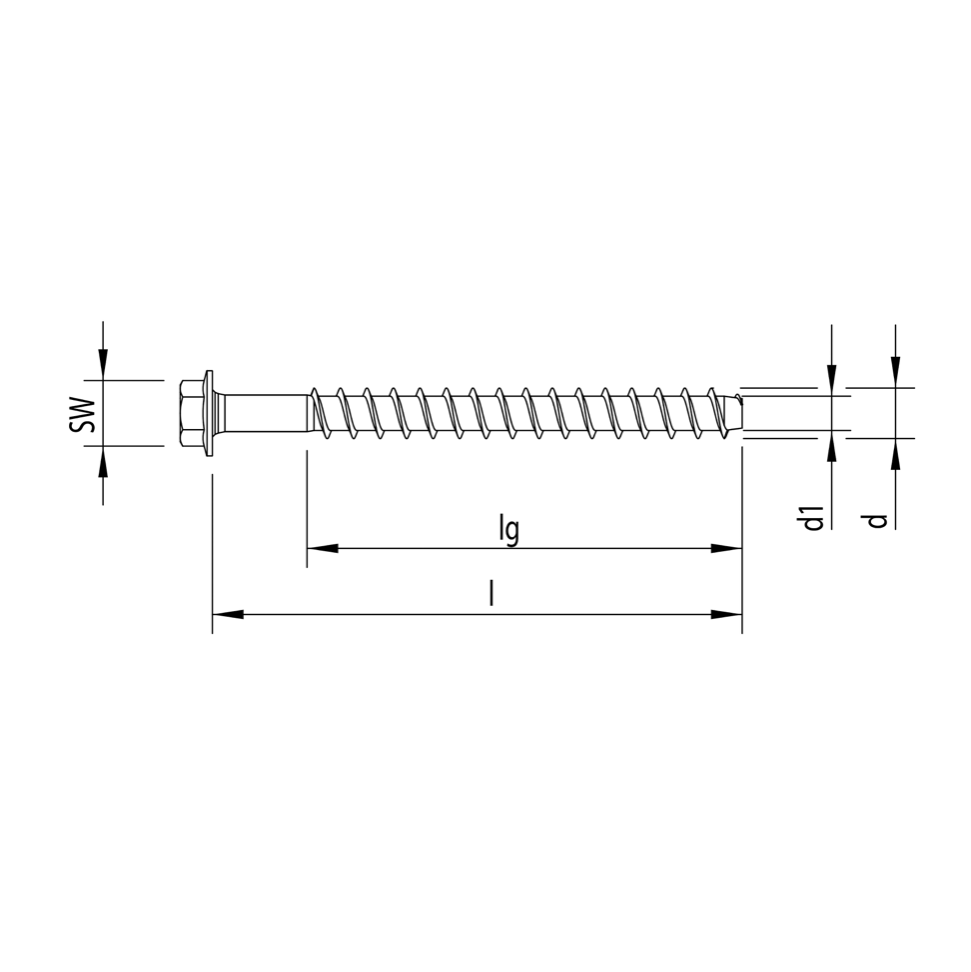

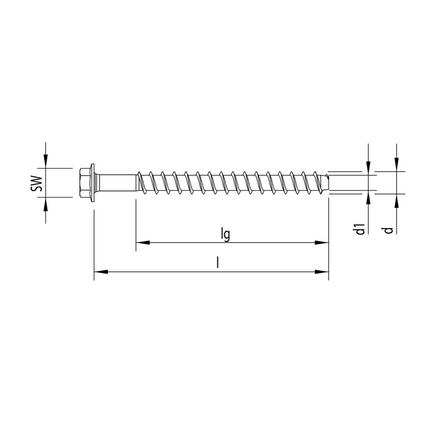

Diameter, d: 10.0 mm
Length, l: 160 mm
Thread length, lg: 95 mm
Head diameter, dk: 19.0 mm
Drill diameter, d0: 8.0 mm
Attachment thickness, tfix1: 95 mm
Attachment thickness, tfix2: 110 mm
Screw-in depth, hnom1: 65 mm
Screw-in depth, hnom2: 50 mm
Drill hole depth, h1: 75 mm
Drill hole depth, h2: 60 mm
Through hole in attachment, df: 12.5 mm
Min. edge distance, cmin: 35 mm
Minimum component thickness, hmin: 115 mm
Minimum component thickness, hmin2: 100 mm
Recommended max. power output of impact wrench, Tmax1: 250 Nm
Material: carbon steel
Surface: galvanised blue, A2K

Product form

HECO MULTI MONTI plus SS Screw anchor 10.0 x 160mm Concrete screw, hexagon head, galvanised blue, A2K 50pcs. (2x 48459)

SKU: 27265 EAN: 4064677031107
    CHF 55.32
    incl. VAT, plus shipping
