Description

Package contents:

- 50x HECO MULTI MONTI plus SS Screw Anchors 10.0 x 140mm

Product description:

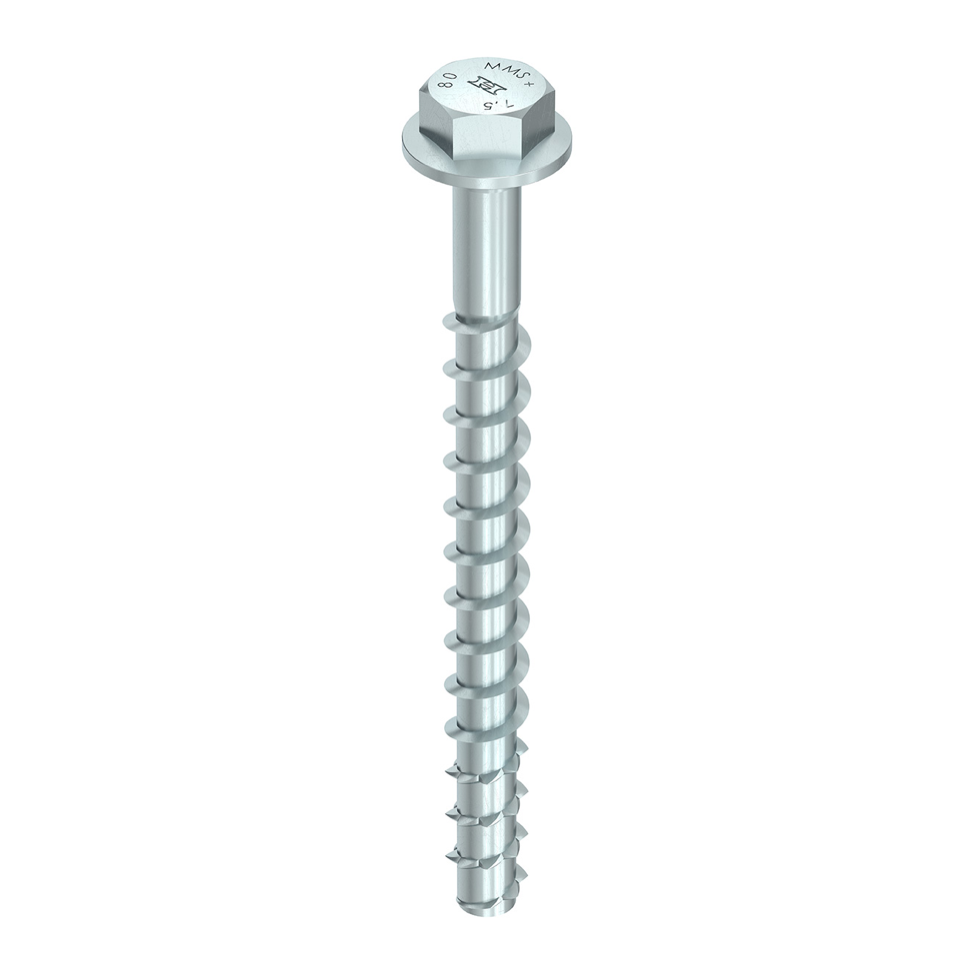

The MULTI MONTI plus self-tapping concrete screw from HECO has a hexagonal head with an embossing and MMS+ marking. It has a full thread with reduced clearance inside the hole, guaranteeing maximum stress and economical construction. Thanks to its ideal interaction between core and thread geometry, the HECO MULTI-MONTI-plus guarantees easy screwing and high load capacities. With its functional toothed tip, it reduces wear and allows multiple use for temporary fixings, making it a screw that can be installed by machine and used immediately. This screw is particularly suitable for mounting poles, pipes, push-pull props, cable ducts, fixing in the field and fixing wall brackets and consoles.

Technical specifications:

Manufacturer: HECO
Manufacturer's designation: MULTI MONTI plus SS
Manufacturer's number: 48457
Product type: Concrete screw
Drive: hexagon head
Drive size: SW-13

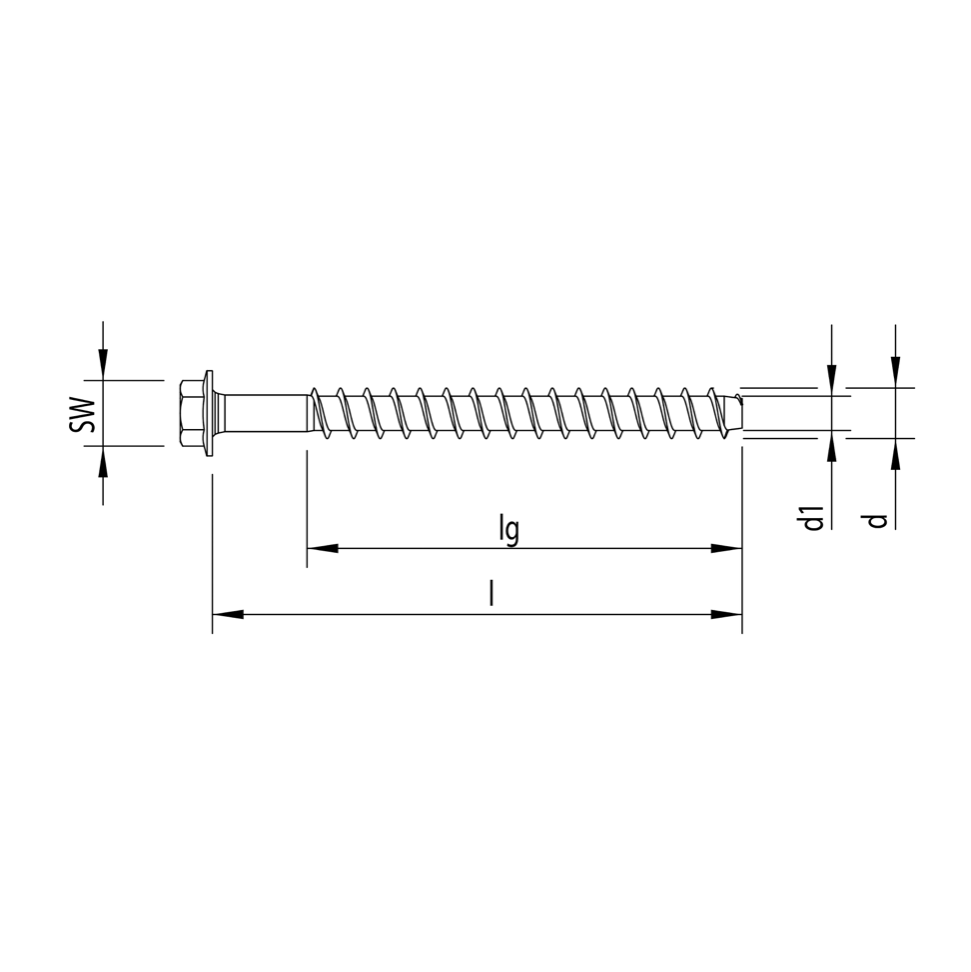

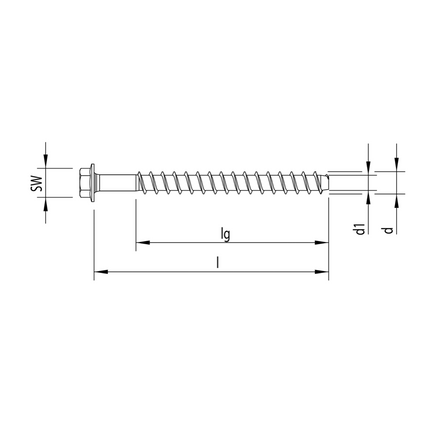

Diameter, d: 10.0 mm
Length, l: 140 mm
Thread length, lg: 95 mm
Head diameter, dk: 19.0 mm
Drill diameter, d0: 8.0 mm
Attachment thickness, tfix1: 75 mm
Attachment thickness, tfix2: 90 mm
Screw-in depth, hnom1: 65 mm
Screw-in depth, hnom2: 50 mm
Drill hole depth, h1: 75 mm
Drill hole depth, h2: 60 mm
Through hole in attachment, df: 12.5 mm
Min. edge distance, cmin: 35 mm
Minimum component thickness, hmin: 115 mm
Minimum component thickness, hmin2: 100 mm
Recommended max. power output of the impact wrench, Tmax1: 250 Nm
Surface finish: galvanised blue, A2K
Material: carbon steel

Product form

HECO MULTI MONTI plus SS Screw Anchor 10.0 x 140mm Concrete screw, hexagon head, galvanised blue, A2K 50pcs. (4x 48457)

SKU: 27267 EAN: 4064677031121
    CHF 51.26
    incl. VAT, plus shipping
    Direkt ist günstiger für Dich

    Preisvergleichs-Portale und Suchmaschinen verlangen bei jedem Kauf hohe Gebühren – oft über 20 % des Verkaufspreises. Diese Kosten zahlen am Ende immer die Kunden. Wir gehen einen anderen Weg: Statt Werbebudgets an große Plattformen zu zahlen, investieren wir lieber in faire Preise, BROpoints, Geschenke und exklusive Bestpreis-Deals, die Du nur direkt bei uns findest. Ohne Zwischenhändler. Ohne Aufschläge. Direkt für dich.

    Information on importing to Switzerland! 🇨🇭🇱🇮 We take care of customs clearance. You will receive your package as normal within the delivery time and you don't have to worry about anything. Your invoice includes Swiss VAT. Placing an order with us feels like a normal domestic order for you. The same goes for returns!

      100 Tage kostenfreie Retoure 100 Tage kostenfreie Retoure
      • American Express
      • Apple Pay
      • Google Pay
      • Twint
      • Klarna
      • Mastercard
      • +12 weitere
      • Vendor
      • condition  New
      Smarte Produktberatung
      Rechnung, Versand & GPSR

      Versand & Rechnung durch: Dinotech e.K.

      Responsible Person for the EU (GPSR) EU-based economic operator that ensures the product complies with the necessary regulations.
      • HECO-Schrauben GmbH & Co. KG
      • Dr.-Kurt-Steim-Straße 28
      • 78713 Schramberg
      • Germany
      • +4974229890
      • info@heco-schrauben.de

      Description

      Package contents:

      - 50x HECO MULTI MONTI plus SS Screw Anchors 10.0 x 140mm

      Product description:

      The MULTI MONTI plus self-tapping concrete screw from HECO has a hexagonal head with an embossing and MMS+ marking. It has a full thread with reduced clearance inside the hole, guaranteeing maximum stress and economical construction. Thanks to its ideal interaction between core and thread geometry, the HECO MULTI-MONTI-plus guarantees easy screwing and high load capacities. With its functional toothed tip, it reduces wear and allows multiple use for temporary fixings, making it a screw that can be installed by machine and used immediately. This screw is particularly suitable for mounting poles, pipes, push-pull props, cable ducts, fixing in the field and fixing wall brackets and consoles.

      Technical specifications:

      Manufacturer: HECO
      Manufacturer's designation: MULTI MONTI plus SS
      Manufacturer's number: 48457
      Product type: Concrete screw
      Drive: hexagon head
      Drive size: SW-13
      Diameter, d: 10.0 mm
      Length, l: 140 mm
      Thread length, lg: 95 mm
      Head diameter, dk: 19.0 mm
      Drill diameter, d0: 8.0 mm
      Attachment thickness, tfix1: 75 mm
      Attachment thickness, tfix2: 90 mm
      Screw-in depth, hnom1: 65 mm
      Screw-in depth, hnom2: 50 mm
      Drill hole depth, h1: 75 mm
      Drill hole depth, h2: 60 mm
      Through hole in attachment, df: 12.5 mm
      Min. edge distance, cmin: 35 mm
      Minimum component thickness, hmin: 115 mm
      Minimum component thickness, hmin2: 100 mm
      Recommended max. power output of the impact wrench, Tmax1: 250 Nm
      Surface finish: galvanised blue, A2K
      Material: carbon steel
