Description

Package contents:

- 50x HECO MULTI MONTI plus F Screw Anchors 6.0x100mm

Product description:

The MULTI MONTI plus screw anchor from the manufacturer Heco is an enhancement of the concrete screw MULTI-MONTI. A great advantage of this screw is that, without the need for wall plugs, the certified screw anchor is driven directly into a pre-drilled hole, where it is immediately loadable. Its reinforced toothed concrete thread cuts an internal thread into the building material while screwing. This creates a positive locking connection, which is subsequently used for the anchoring. The MULTI-MONTI-plus system is not only fast and easy to mount, but also ensures a secure connection. The screws can be mounted close to the edge and without a torque wrench, what´s more they can be removed and reused after checking the threads condition.

Technical specifications:

Manufacturer: HECO
Manufacturer Number: 48503
Manufacturer Designation: MULTI MONTI plus F

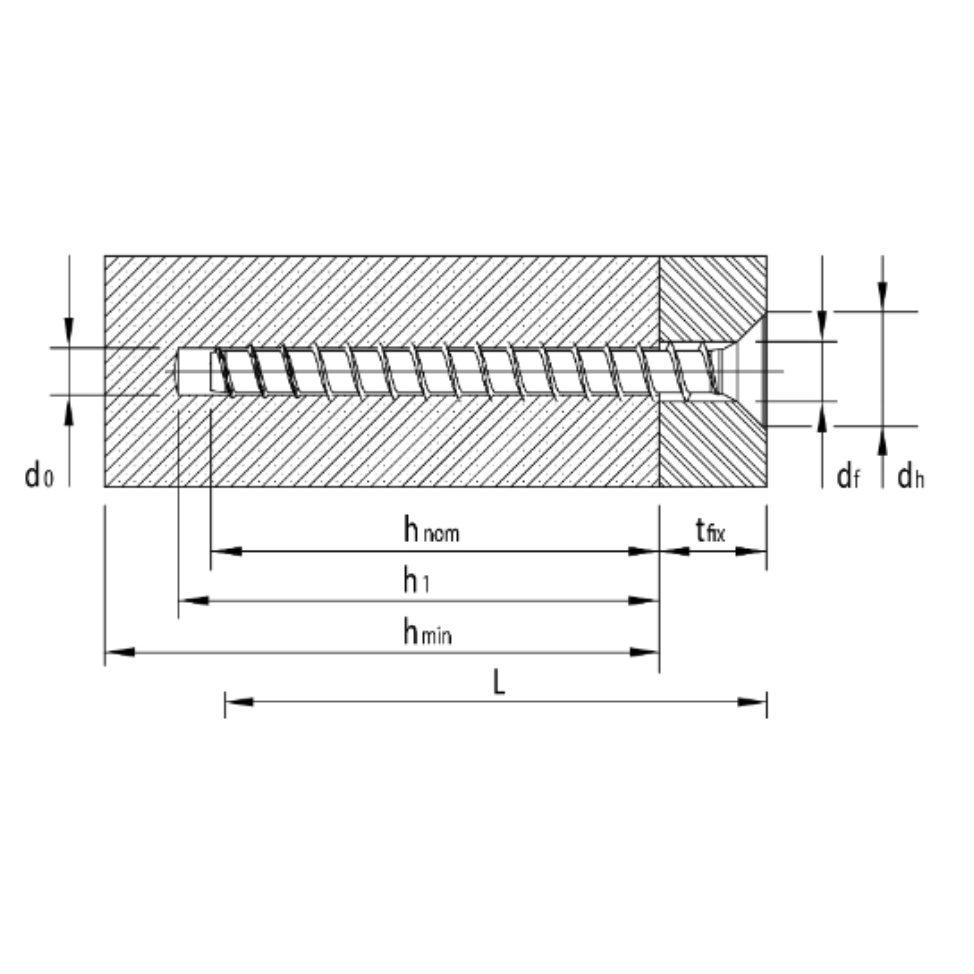

Clamping Strength, tfix1: 55mm
Clamping Strength, tfix2: 65mm
Size of Recess: T30
Drill Diameter, d0: 5.0mm
Drill Hole Depth, h1 : 50mm
Drill Hole Depth, h2 : 40mm
Diameter of Clearance Hole in the Fixture, df: 7mm
Embedment, hnom1: 45mm
Embedment, hnom2: 35mm
Thread Length, lg: 63mm
Head Diameter, dk: 11.5mm
Max. Recommended Power Output of the Impact Screw Driver, Tmax1: 100Nm
Max. Recommended Power Output of the Impact Screw Driver, Tmax2: 75Nm
Min. Thickness of Concrete Member, hmin: 100mm
Min. Edge Distance, cmin: 30mm
Diameter, d: 6.0mm
Length, l: 100mm
Head Form: Countersunk Head

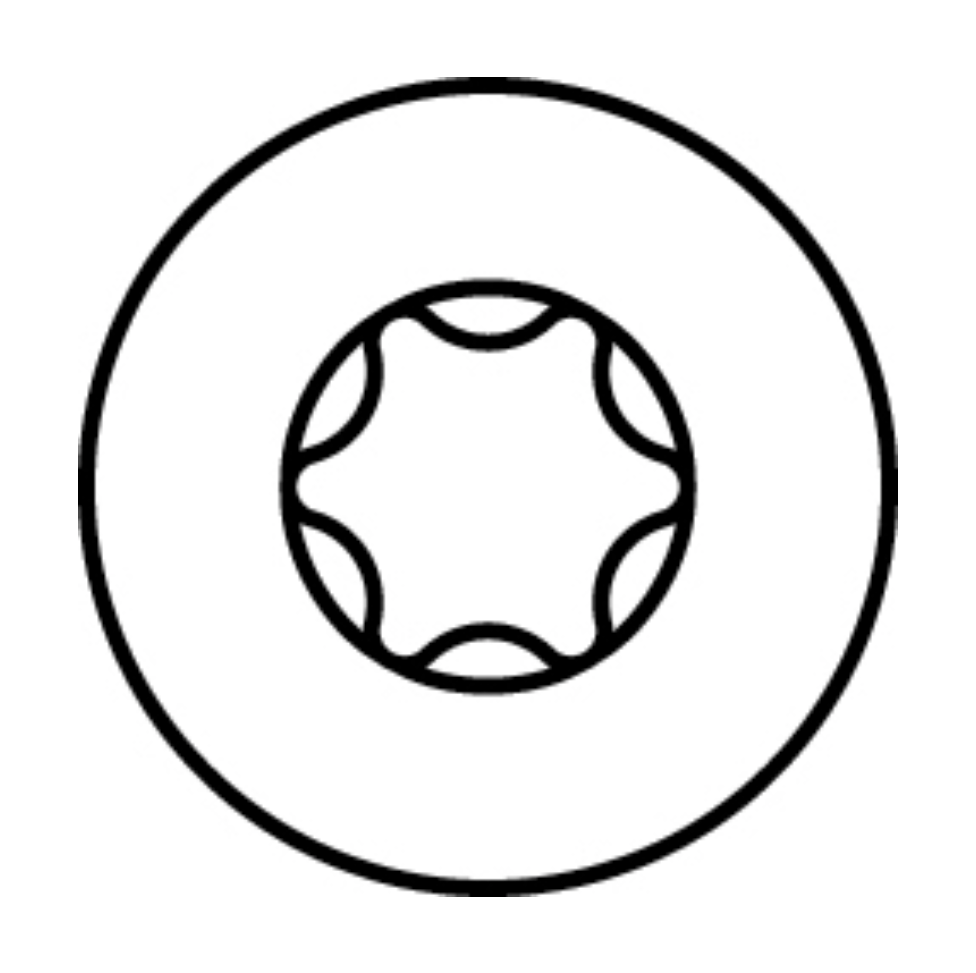

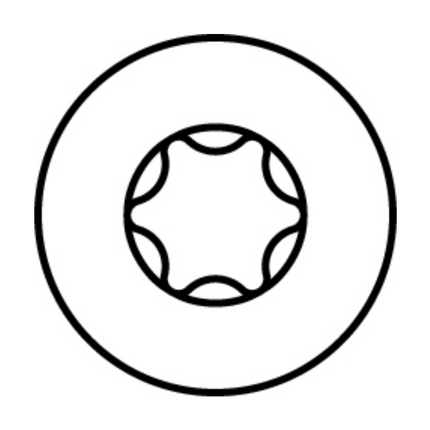

Recess: T-Drive
Material: Carbon Steel
Surface: Blue Zinc Plated, A2K

Product form

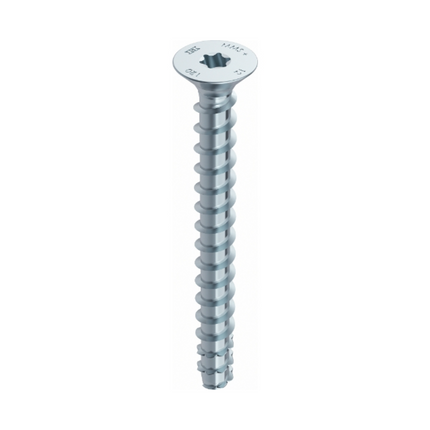

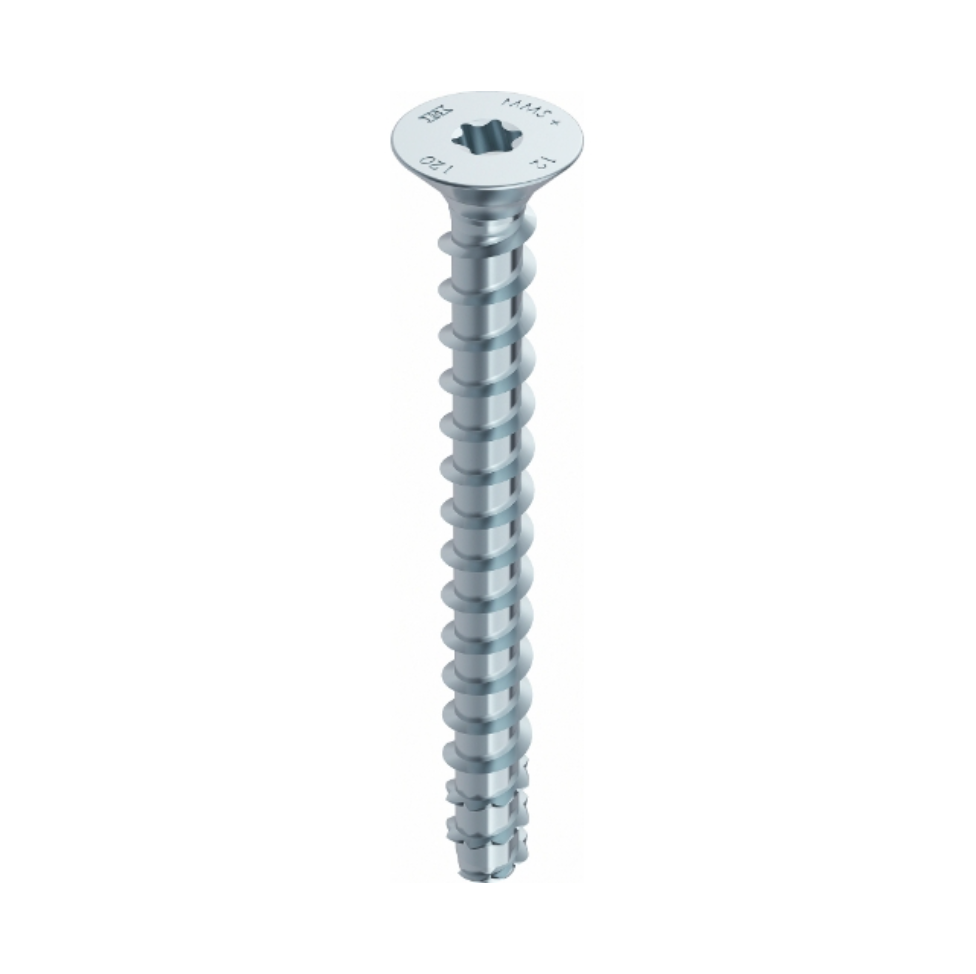

HECO MULTI MONTI plus F Screw Anchor 6,0x100mm, Concrete Screw, Countersunk Head, T-Drive, Blue Zinc Plated, A2K, 50 pcs. (48503)

SKU: 26037 EAN: 4019787485036
    CHF 24.39
    incl. VAT, plus shipping
